Our Alarm system got built in unique Anti-Temper technology, nearly all motorbikes or scooters alarm can be disarmed within seconds by short circuiting one of indicator lamp. With our system it is impossible to so.
NOW WITH EVEN LOWER CURRENT CONSUMPTION (1.2mA)than previous model, LOWER THAN LASERLINE , SPYBALL OR ANY OTHER CHINESE MOTORCYCLE ALARMS THAT MEANS IN ARMED MODE ALARM WILL NOT DRAIN YOUR BATTERY.
Eco- Mode for Long term parking virtually consuming Zero current.
Secure override facility in the event of loss or damage to transmitters via personal pin code.
We are only company on web to provide comprehensive wiring diagram for your bike in order to make job of installing your alarm much easier, it is provided free of charge at your request, see below for details.
HAWK® Motorcycle alarms products are also acknowledged by DIY installers as one of the easiest to install and all functions controlled by onboard 8bit Microprocessor. You only need to connect 3 wires to get alarm up & running. For advanced installation see supplied very easy to follow step by step install manual.
Here is a typical example of wiring diagram
Power Supply - Connect the positive power supply wire of alarm system to the BLACK wire found in the white single connector that is located under the tail fairing, behind the tail light. Connect the negative power suppy wire of the alarm system to the BLACK wire found in pos. 2 of the white 4-way connector that is also located under the tail fairing , behind the tail light.
Engine immobilisation-Cut the BLACK wire bridge of the white 4-way connector that is sited under the fairing of the tail light, behind the tail lamp.
Ignition controlled positive supply - Connect to the BLACK/BLUE wire available in the yelllow 13- way placed behind the fairing of the left turn indicator, on the left of the headlamp.
Left & Right turn indicators- Connect to BLACK wire and LIGHT GREEN wire available in the loom placed under the seat , behind left fairing.
Remote Engine Start - Connect to YELLOW/BLACK wire available in the yellow 13- way connector placed behind the fairing of the left turn indicator , on the left of the headlamp .
This alarm works with any 12v machine including trikes and ATV's.
Motorcycle alarms is suitable for followings:
Aprila motorcycle alarms, Benelli motorcycle alarms , Beta motorbike alarms, Bimota motorcycle alarms, BMW motorcycle alarms, Buell motorcycle alarms, Cagiva motorcycle alarms, Derbi motorcycle alarms, Ducati motorcycle alarms, Gilera motorcycle alarms, Guzzi motorcycle alarms, Harley Davisdon motorcycle alarms, Honda motorcycle alarms,Hyosung motorcycle alarms, Italjet motorcycle alarms, Kwasaki motorbike alarms, KTM motorcycle alarms, Kymco motorcycle alarms, Malguti motorbike alarms, MBK motorcycle alarms, Morton motorcycle alarms, MV motorcycle alarms, Peugeot motorcycle alarms, PGO motorcycle alarms, Piaggio motorcycle alarms, Suzuki motorcycle alarms, SYM motorcycle alarms, Triumph motorbike alarms, Yamaha motorcycle alarms & many more.
HAWK HA-X50M Remote Engine Start Alarm Features:
•Military Grade (Anti-Scan/ Grabber) random encryption remote controls.
•Custom software based masked into 8Mhz microprocessor to give total computer control if entire system.
•Anti Temper Technology
•Hi-Tech nearly credit card sized waterproof casing
•Built in immobiliser system designed for both 2 stroke and 4 stroke engine
•Remote Engine Start-up Fully true key less drive just press button on remote control & way you go, other makes of alarm you have to put key into ignition switch then press remote button to start.
•Auto rearming (can be turned off via remote control)
•Current sensor to prevent hot wiring
•Silent Arm / Silent Disarm (to comply with EU regulations)
•Multi-Function Bright Blue Waterproof LED
•Alarm Memory (let's you know whether your bike being tampered with)
•Built in 3D Dual axis shock Sensor adjustable by remote control (can be turned off via remote control)
•Eprom for Memory back-up
•Pin-Code Secure Override
•Bike finder / Panic
•Professional 125db siren
•Eco Mode low current drain for long term parking
•Low remote battery warning indicator
Auxiliary output for optional GSP/GSM tracking device (coming soon) or battery backup siren etc
You will get the following:
◦Genuine HAWK retail box

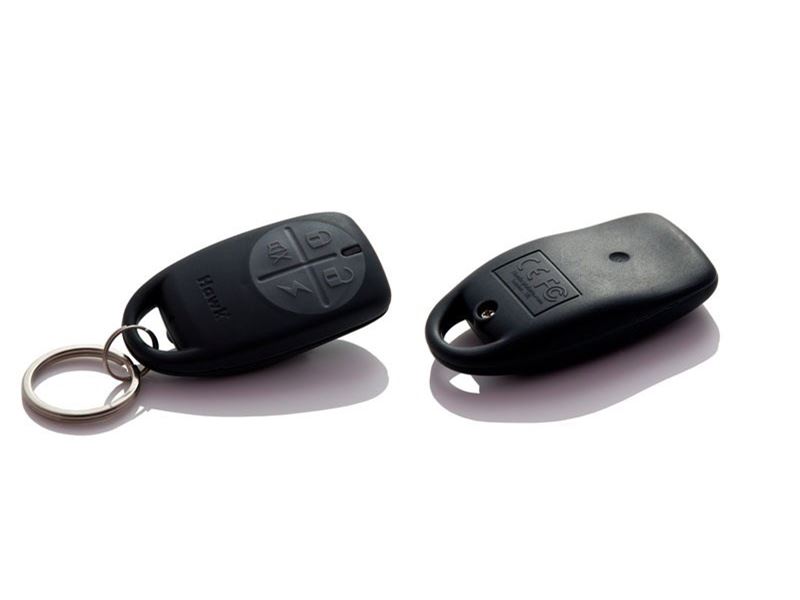

◦2 miniature Hi-Tech splash proof carbon coated remote controls
◦1 HAWK GUARD HA-MW 01 Proximity (Microwave) sensor
◦1 nearly credit size compact control module
◦1 Black professional 125db miniature siren
◦1 HAWK neck strap
◦1 HAWK Security sticker
◦1 Very easy to follow step by step British user / Install manual
◦Various cables & harness with waterproof fuses
◦Ultra bright low current waterproof blue LED
Hawkcaralarm.com customer reviews give you the chance to give your opinion on the latest HAWK products. See what customers had to say about this product below. To view more reviews or write your own review, use either of the buttons below.
|Review:||Motorcycle Alarms + Immobiliser With Proximity Sensor||11/18/2013|
review by: SW400 Andy
|Had this fitted for a few months now andvvery impressed with the functionality which you can find on systems 4 times the price. Can't find fault with any of the whole process from purchasing to fitting.|
|Review:||Motorcycle Alarms + Immobiliser With Proximity Sensor||09/04/2013|
review by: Dr Stephen Dakin
|Well, for just over £40 this is a total bargain.
Build quality and design: absolutely superb, clearly built offshore, but built well (please correct me if I am wrong here) and as good as any other motorbike alarm I have ever had.
Fitting instructions, absolutely perfect, well tailored to the bike. 2 Hrs to do a very professional job.
I am buying another one now for another bike, so how can I possibly fault it.
|Review:||Motorcycle Alarms + Immobiliser With Proximity Sensor||06/01/2012|
review by: Pecorari Eleuterio
|Tutto perfetto! Ottimo prodotto! Installazione chiara e semplice!|
